Overview:

ICON Vehicle Dynamics F-150 suspension systems are designed with maximum performance and the serious driver in mind.  ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. Uniball upper control arms on the F-150 not only add strength and durability, but help retain factory alignment spec range increasing caster over stock. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2014 F-150 4wd Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Wheel & Tire Fitment Info:

OEM Wheels & Tires:    Yes

Aftermarket Wheels:    8" - 9" Wide Wheel With 5" Backspace

Aftermarket Tires:       33 x 11.50 Tall Tires

                                 (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

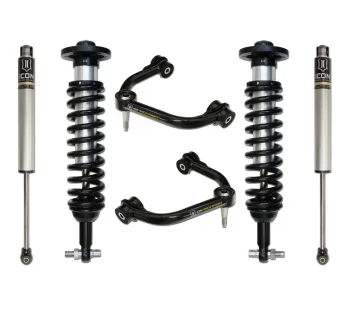

System Components:

91710    (QTY - 1) - 2014 Ford F150 4WD (0-3" Lift) 2.5" IFP Coilover Shocks

98500    (QTY - 1) - 2004-2014 Ford F150 4WD Uniball Upper Control Arms

96515    (QTY - 2) - 2004-2014 Ford F150 2WD/4WD (0-3" Lift) 2.0 Aluminum Series Rear Shock
